Gerab National Enterprises have been globe valve suppliers to the UAE and Middle East markets for many years. We supply a wide variety of valves through our preferential arrangements as check valve distributors for some of the world’s most sought-after manufacturers, we are confident that we can supply your project’s requirements entirely to specification, even at short notice.

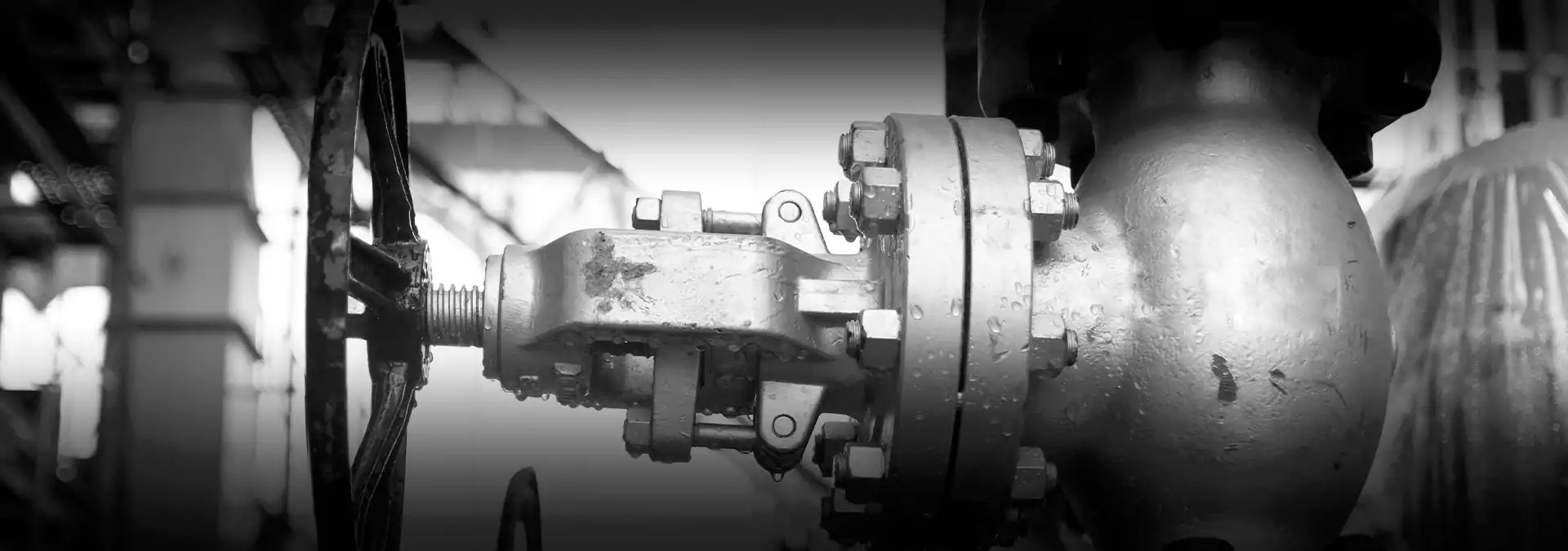

What is a Globe Valve?
The globe valve gets its name from its shape. It has a body with an interior partition, and the centers of the valve inlet and outlet are aligned. This arrangement causes a change in the flow direction, resembling an S shape.
The flow of fluid is obstructed by the disc or plug as it presses against the seat in the partition.
Globe valves can serve two purposes: controlling the flow rate by adjusting the shape of the disc, and fully opening or closing the flow.
There are three types of flow that can be achieved using a globe valve: straight flow, angle flow, and cross flow.
Parts of a Globe Valve
|
Angle Body |
used in intersecting lines. |
|
Welded Bonnet |
Generally used for gas and toxic flow line applications. |
|
Outside Screw & Yolk |
An outside screw and yoke type design is generally used for all globe valves. |
|
Pressure Seal |
On a pressure-seal valve, the higher the body cavity pressure, the greater the force on the gasket. Pressure-seal bonnets are used extensively for high- pressure high-temperature applications, such as the power industry. Pressure-seal valves are much lighter than bolted bonnet designs. Due to the pressure energization of the seal ring, they are normally not used in pressure classes below ANSI class 600. |
|
Extended Stem |
Stem extended at bonnet for cryogenic, pressure-seal, and buried (Under Ground) applications. |
|
Ball Type Disc |
Globe valves feature a ball-type disc that provides a fine-grain surface on the taper seat. |
|
Plug Type Disc |
For services that demand hard-faced seats, a plug-type disc is provided. Also known as a Swivel Plug Disc. |
|
Renewable Seat |
These seats can be replaced easily if required. They will often be threaded seats or freely placed seats. |
|
Integral Seat |
Machined in the body or welded to the body. Cannot be replaced easily. |
Globe Valve Classification
|
Size |
Class |
Body |
Bonnet |
Yoke |
Trim |
Ends |
||
|
Stem |
Disc |
Seat |
||||||
|
1/2 ” to 48″ |
150 , 300 , 600 800 , 900 , 1500 2500 |
Normal Body |
Bolted Bonnet |
OS & Y |
Normal Stem |
Ball |
Renewable / Threaded |
RF , RTJ , BW , SW , NPT |
|
Angle Body |
Welded Bonnet |
Pressure Seal |
Extended Stem |
Plug |
Non Renewable / Welded |
|||
Globe Valve Standards
|
Valves Design |
BS 1873 ,ASME B16.34 ,MSS SP- 42 |
|
End to End Dimensions |
ASME B16.10 & ISO 5752 |
|
Flanged Dimensions |
ASME B16.5 & ISO 7005-1 Part. 1 ASME B16.47 BS 3293 MSS- SP-44 |
|
Butt weld Dimensions |
ASME B16.25 |
|
Visual Inspection |
MSS-SP-55 |
|
Pressure Test |
API 598, API 6D, B16.34, ISO 5208, BS 6755 Part. 1 & MSS –SP-61 |
If you’re looking for a reliable globe valve stockist, contact us here for more details.
